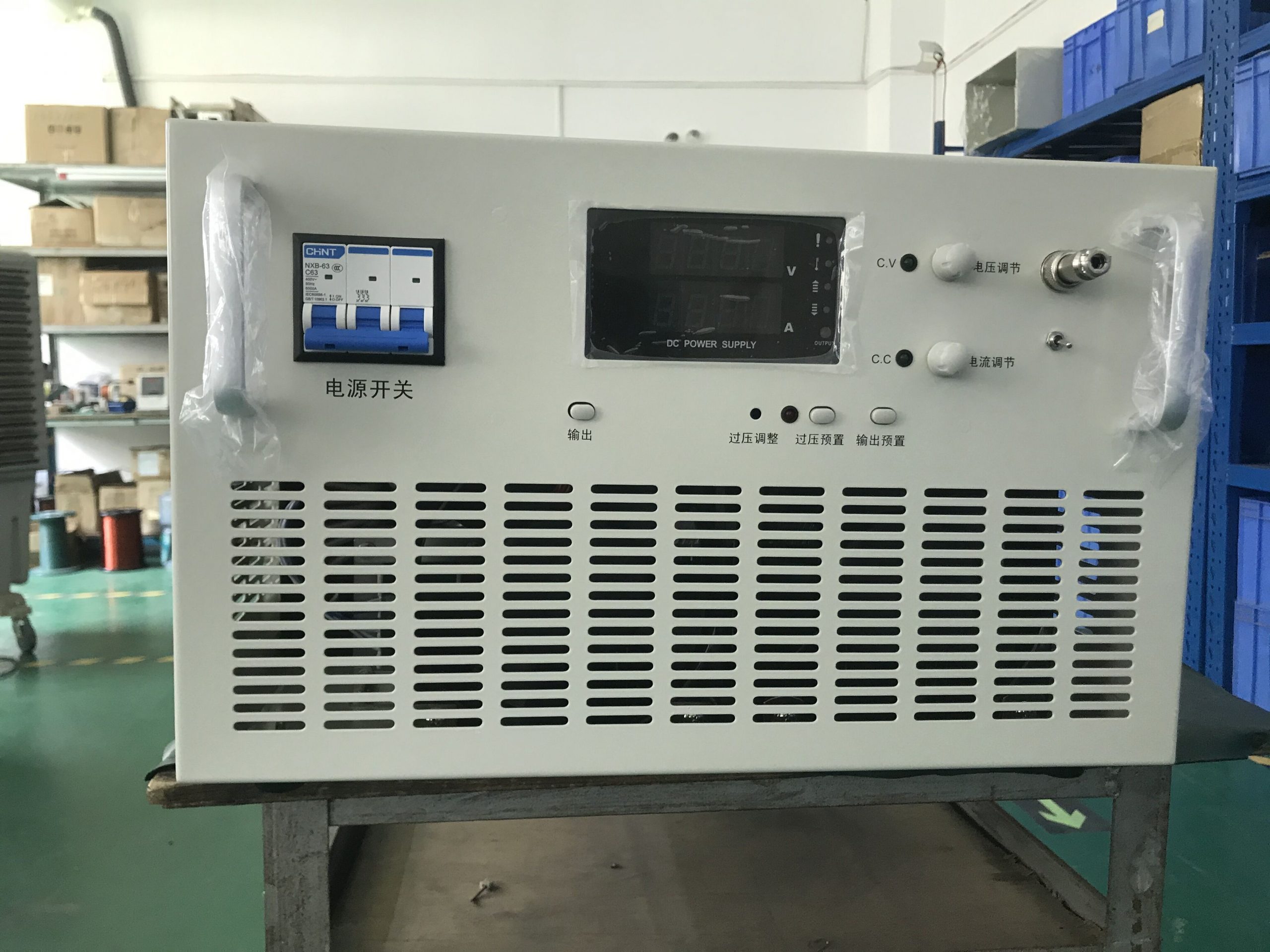

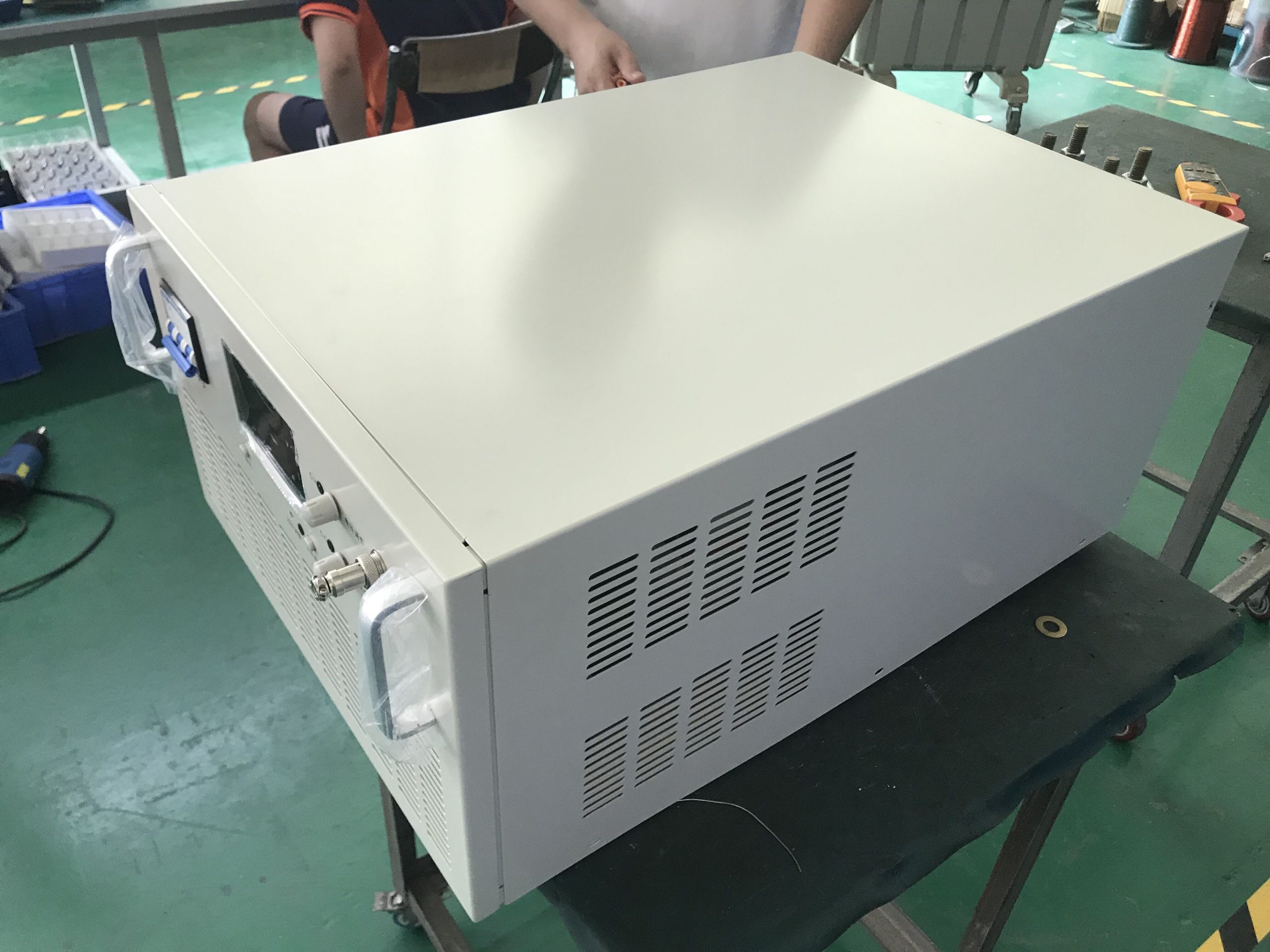

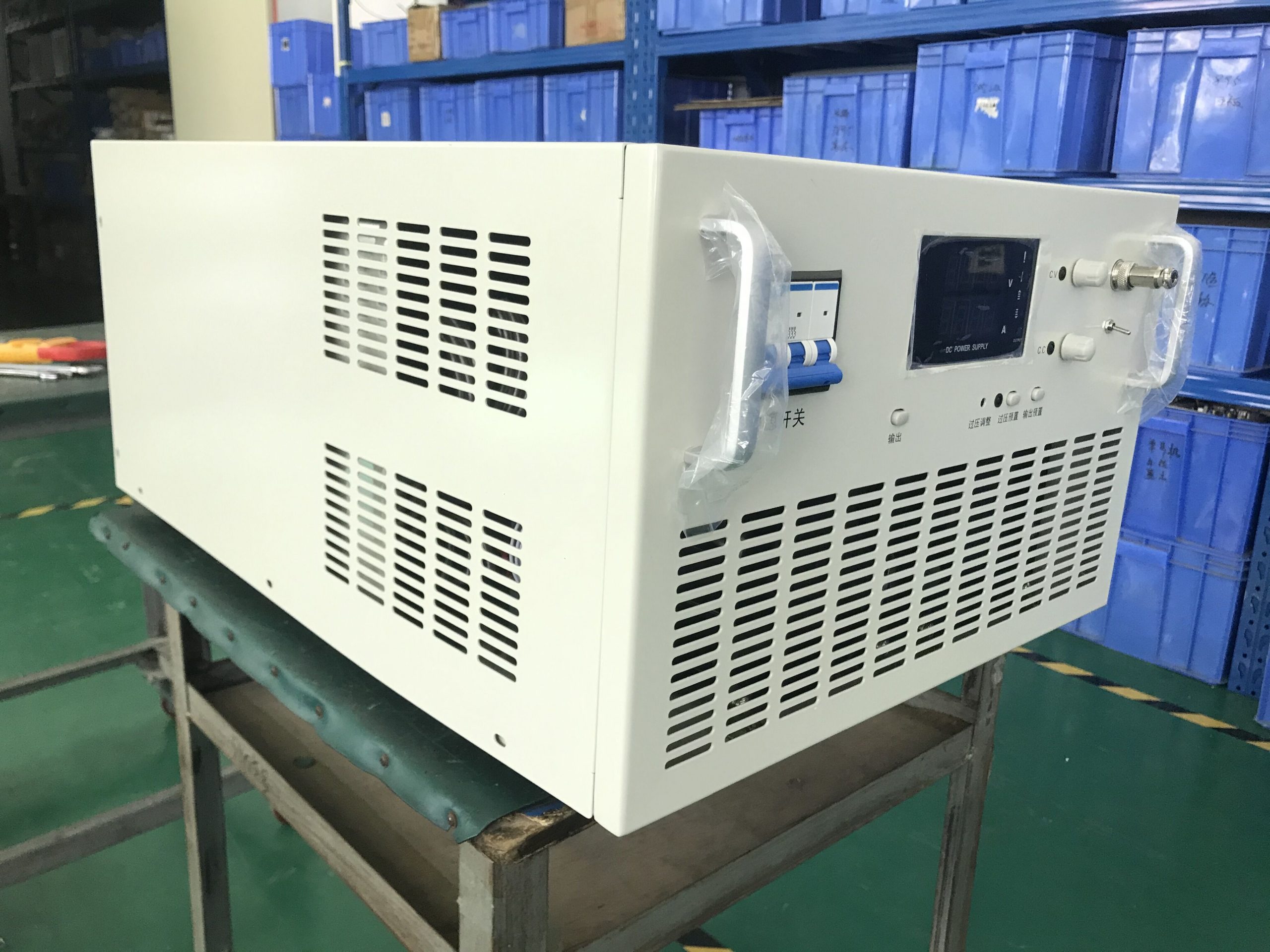

POMING AC 440V 60Hz to DC 0-10V 2000A Variable Power Source for Electroplating

Description

Product Description:

The PMDPS series stable voltage and current power supply is made of advanced PWM control technology design, with a wide input voltage range; It adopts advanced switch power control technology and components, with high efficiency, light weight, energy conservation and environmental protection; It has the function of automatic switching between stable voltage CV and stable current CC working modes, which can be used as a stable voltage source or a stable current source. To improve the reliability of the power supply, an input undervoltage protection circuit, output overvoltage protection circuit & overheat protection circuit have applied; For the convenience of use, this power supply has the function of viewing the set values of constant voltage, constant current, and overvoltage protection. Other optional functions include current remote control, voltage remote control, and switch on/off remote control. To adapt to the use of experienced capacitors by capacitor manufacturers, capacitor discharge and pulse aging functions can also be optional. This series of products is an ideal DC regulated power supply with extremely high stability and reliability. They’re widely used in factories, schools, research institutes, laboratories, and all other places that require high stability DC power supply.



Outstanding Features:

◆Adopting PWM switch control technology, the entire machine is small in size, light in weight, and high in efficiency

◆High accuracy, small ripple, and stable performance

◆Excellent electronic characteristics and fast response speed

◆Equipped with automatic switching function for constant voltage and constant current working modes

◆Stable voltage/current high stable output

◆Built in O.V.P overvoltage protection circuit, O.T.P overheat protection circuit, and short circuit protection function.

◆Delayed soft start during startup to avoid overshoot of output voltage during startup

◆Pre-setting and pre-viewing functions for constant voltage, constant current, and overvoltage protection values.

◆It can preset the output of voltage and current, as well as the output of contact switches, with simple operation and convenient use



Application:

It’s widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military, medical, shipbuilding, railways, and other high-tech fields.

◆Motor appliance: electric vehicle motors, electric vehicle controllers, DC motor testing, etc

◆Electrical appliances:LED testing and aging, energy-saving light bulb testing and aging, lamp testing, tungsten wire gasification, etc

◆Automotive: Automotive electronics, high-power DC motors, automotive motor controllers, automotive lighting, cigarette lighters, automotive audio and video

◆Electronic devices: capacitors, resistors, relays, transistors, sensors, etc

◆Display device: display screen, liquid screen, touch screen, car DVD, mobile phone display, etc

◆Electrochemical category: electrolysis, electroplating, anodizing, research on non-ferrous metals, etc

◆Other areas that require DC power supply for product testing and research and development.

Main technical parameters

Item	Parameters
Model N.O.	PMDPS-102000
Input voltage range	3 Phase AC440V±10%
Input frequency	50Hz/60Hz
Output voltage	DC0-10V
Output current	0-2000A
Maximum output power	20KW
Power stability rate	≦0.5%+10mV
Load stability rate	≦0.5%+30mV
Ripple	≤1%+10mVrms
Voltage value display	3-and-a-half digit meter Accuracy: ± 0.8%FS+1 word (1%-100% rated value)
	Display format  00.0V-12.0V
Current value display	Display format Accuracy:±0.5%FS +1 word (1%-100% rated value)
	word (1%-100% rated value)  000A-800A；
Insulation resistance	Input－Output：≥20MΩ   Input－Cabinet：≥20MΩ    Output－Cabinet：≥80MΩ
Insulation strength	Input－Output：AC1500V，10mA，1mins  Input－Cabinet：AC1500V，10mA，1mins Output－Cabinet：AC1500V，10mA，1mins
Output overvoltage protection	Built in o.v.p protection, protection value is rated value+5%
Output overcurrent protection	Overload, short circuit constant current output
Over temperature protection	Built in o.t.p protection with protection value of 85 ℃± 5% (radiator temperature)
Voltage and current setting	potentiometer

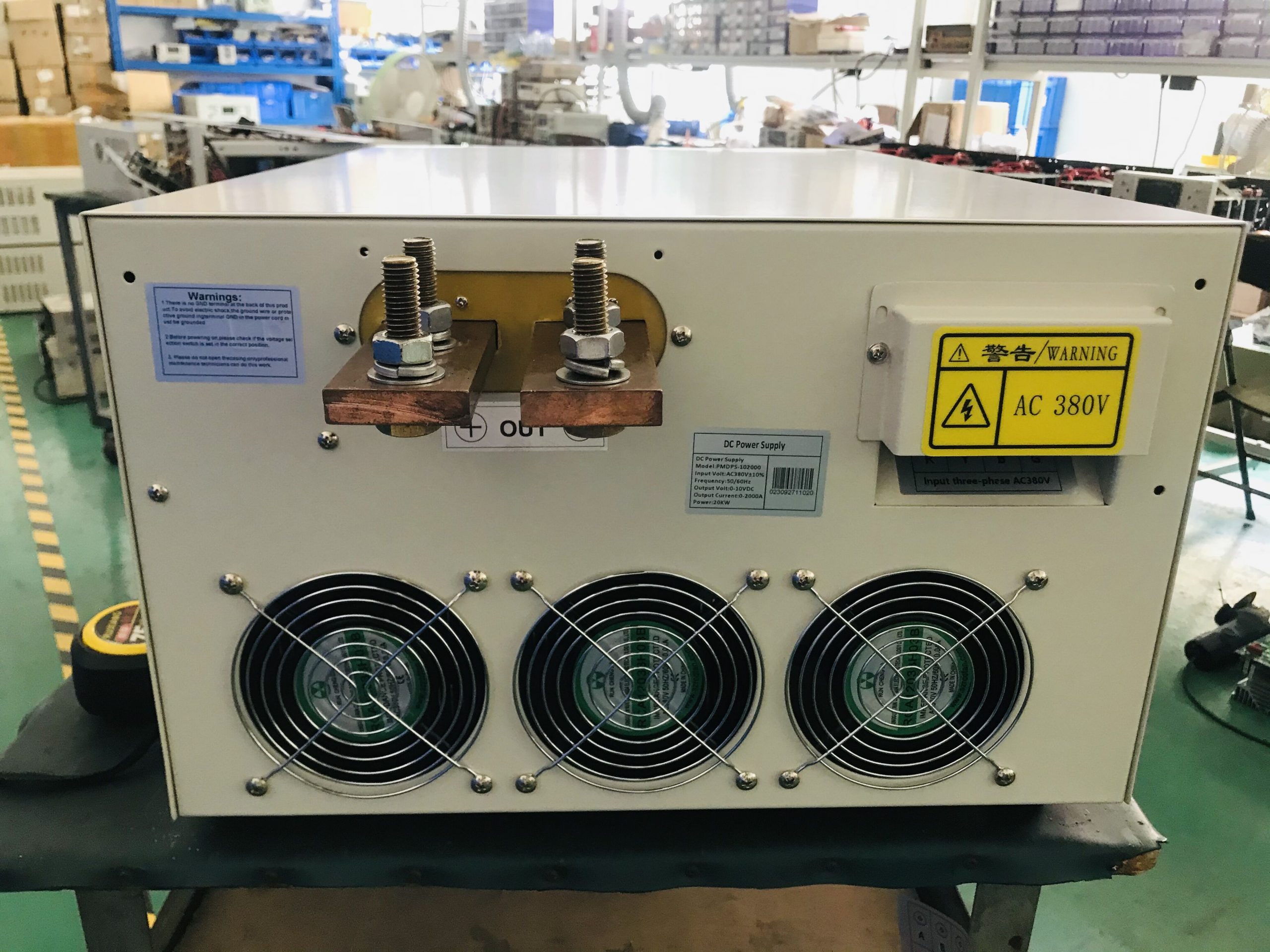

Output polarity	Output positive(＋)、negative(－) can be grounded at will
Heat dissipation mode	Forced air cooling
Operating environment	Indoor used design, temperature: -10 ℃～ 40 ℃; Humidity: 10% -85% RH
Storage environment	Temperature：-20℃～70℃；Humidity：10％～90％ RH
Product size	L*W*H: 600mm*750mm*650mm
Remark: all values are typical, so they will be exceeded under different loads or other conditions.   The accuracy is measured in the load terminal voltage detection state. In the case of temperature error and element aging, there may be deviation between the actual value and the rated value.
