POMING 3000VA/2400W 72V Built-in Battery Pure Sine Wave UPS for Home Appliance Tower Mount
描述
Feature:
a) Load power factor is 0.8, adaptive for the development trend of electrical equipment and the load capacity is more strong;
b) Active input power factor correction(PFC), input power factor is over 0.98;
c) Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas
d) It can be connected with generators;
e) Zero transfer time effective ensures the safety and reliability of load operation.
Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
1. It can be connected to the generator
2. Wide input voltage range (135v-280v), adaptive to the extrem
3. Automatic voltage regulation(AVR), stable output voltage ensures security and stability to the electrical equipments
4.Smart battery managemen technology, automatically adjusts the battery cut off voltage and extends battery life time
5. Cold startup is supported, directly startup ups if utility power is not available to meet emergency.

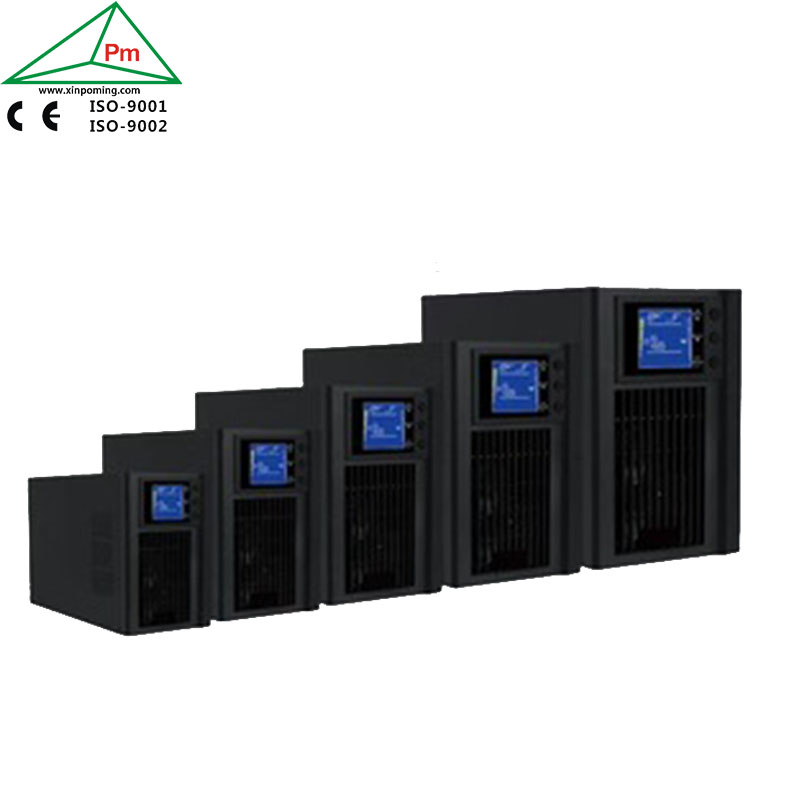

Product Line:
Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.
| Model N.O. | PMO-1000(R) | PMO-1000RS | PMO-2000(R) | PMO-1000RS | PMO-3000(R) | PMO-3000RS | |
| Nominal Output Capacity | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | ||||
| AC Input | Input Voltage Range | 115-300VAC±5 | |||||
| Input Frequency | (45-55)±0.5Hz | ||||||
| Bypass Voltage | 80VACx(1±5%)-285VACx(1±5%) | ||||||
| Battery Input | Battery Unit Voltage | 24V | 36V | 48V | 72V | 72V | 96V |
| Battery Installation | Internal | External | Internal | External | Internal | External | |
| Backup Time(Half/Full) | Half Load >= 10 mins; Full Load >= 5 mins(Standard type) | ||||||
| Maximum Power Input Current | < 150% of Nominal Current | ||||||
| Battery Charge Time | Long Time UPS Depends on the Capacity of External Battery Packs | ||||||
| AC Output | Output Voltage | 220VAC±1%(Inverter Output) | |||||
| Output Frequency | 50±5Hz(AC Input Normal);50Hz±1%(AC Input Abnormal) | ||||||
| Wave Form | Sine Wave THD < 3% (Linear Load);Sine Wave THD < 8%(Non-Linear Load) | ||||||
| Output Power Factor | 0.8 | ||||||
| Overload Capacity | 130% Continuous Load;Not Less Than 30s, Recovery Point: 90% Load; | ||||||
| Output Current Crest | 3:01 | ||||||
| Transfer Time | 0 ms | ||||||
| Communication & Monitoring Function | RS232(Optional 485), Dry Contact,Intelligent Slot(Expandable SNMP,SMS,and Other Monitoring | ||||||
| Tower | N.W(Net Weight)(kgs) | 8.5/9.5 | 5/6 | 17/19 | 9.9/11.9 | 22.5/24.5 | 10/12.5 |
| Unit Size(mm) | 355*145*225 | 425*190*320 | |||||
| Master Carton Size(mm) | 475*455*345 | 525*325*460 | |||||
| Master Carton G.W.(kgs) | 18.6 | 12.6 | 19 | 11.9 | 24.5 | 12.5 | |
| Qty/Master Carton(pcs) | 2 | 1 | |||||
| Rack | N.W/G.W (kgs) | 10.5/12.5 | 7.7/9.7 | 17.2/19.2 | 9.6/10.6 | 22.2/24.2 | 10.3/12.3 |
| Unit Size(mm) | 420*440*85 | 590*440*85 | 420*440*85 | 590*440*85 | 420*440*85 | ||
| Master Carton Size(mm) | 560*530*180 | 725*530*180 | 560*530*180 | 725*530*180 | 560*530*180 | ||
| Qty/Master Carton(pcs) | 1 | ||||||
